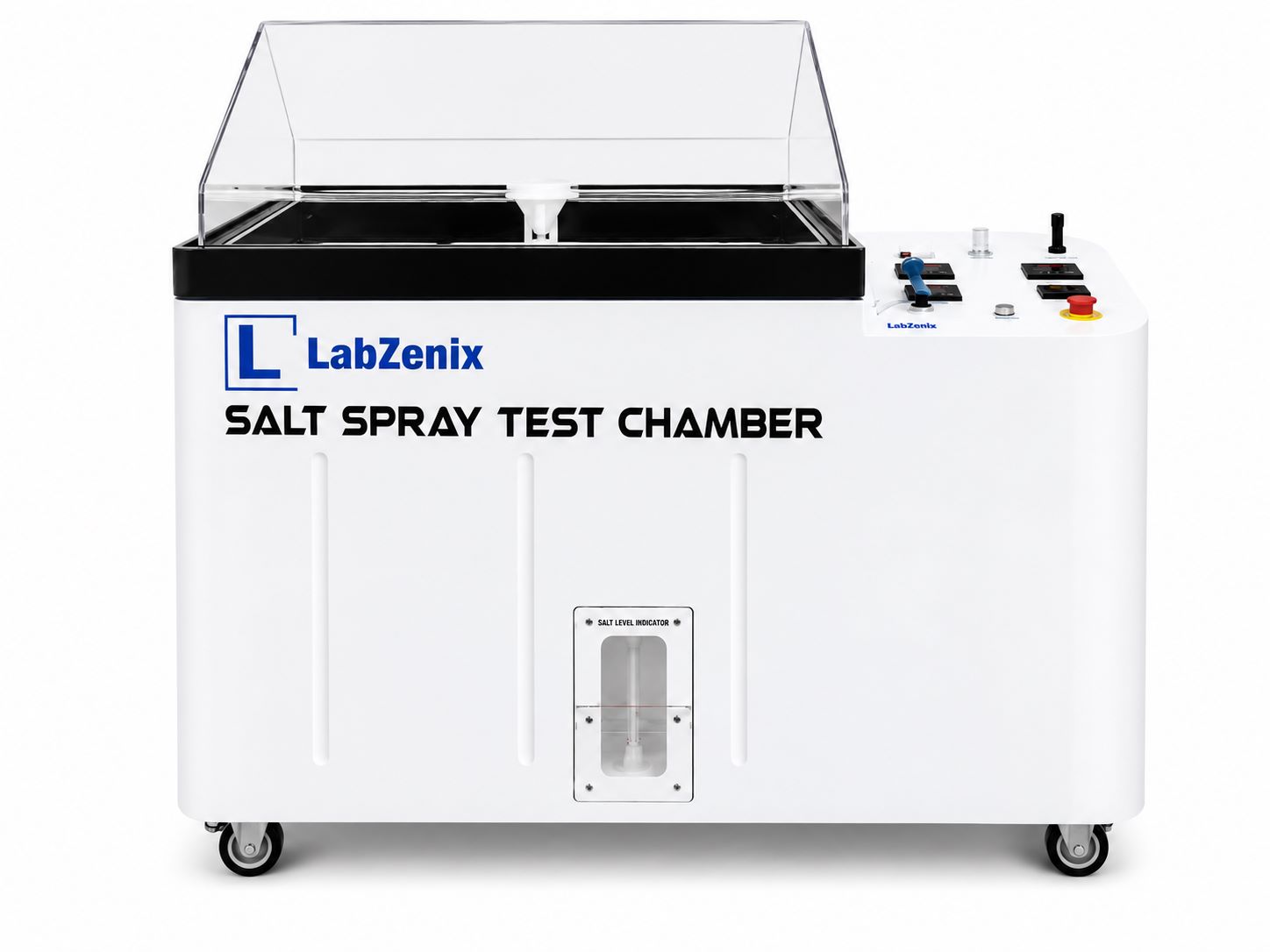

Salt Spray Test Chamber -Digital - LabZenix
Trusted Corrosion Testing to Assess Paint, Plating & Coating Quality
A freshly coated component can look perfect when it leaves the production line. The real concern is what happens when moisture and salt reach its surface. Small coating defects, exposed edges, or inconsistent pretreatment can become starting points for corrosion. Salt Spray Test Chamber -Digital - LabZenix brings this quality concern into the laboratory, helping manufacturers examine protective finishes under controlled salt fog exposure.
For businesses in the Paint, Plating & Coating Testing Instruments industry, corrosion testing provides useful evidence for production checks, supplier approval, and customer inspection requirements.
🔬 What Does a Salt Spray Chamber Do?
A salt spray chamber creates a controlled atmosphere by atomizing a prepared salt solution into fine fog. Test specimens remain inside the cabinet for a specified exposure period. After testing, operators examine them for changes such as rust, blistering, coating breakdown, or corrosion around intentionally scribed areas.
The purpose is to assess performance against an agreed test requirement. A salt spray corrosion test chamber does not directly reproduce every outdoor environment or convert exposure hours into guaranteed service life.
🎛️ Digital Control for Everyday Laboratory Work
Long exposure tests require careful monitoring. Clear digital indication helps operators follow test conditions and identify departures from the approved procedure.
When selecting Salt Spray Test Chamber -Digital - LabZenix, discuss the required temperature control, timer functions, solution capacity, specimen arrangement, and operating safeguards. Automatic functions should be selected around the laboratory’s actual workload.
Useful features to confirm include:
Digital temperature indication and adjustment.
Exposure timing suitable for the required test duration.
Accessible salt solution filling and monitoring.
Specimen holders appropriate for component dimensions.
Convenient cleaning, drainage, and maintenance access.
Confirm the supplied configuration before specifying automatic filling, data logging, alarms, or programmable operation.
🧪 Neutral Salt Spray Test (NSS Test)
The Neutral Salt Spray Test (NSS Test) is widely used to examine metals and protective coatings under defined salt fog conditions. It can help identify discontinuities in a finish and check whether production quality meets a specified requirement.
Accurate testing takes more than simply putting components inside the chamber. Solution preparation, pH, temperature, fog collection, specimen positioning, and cabinet cleanliness all affect the exposure.
For example, a plating unit investigating unexpected white corrosion needs consistent preparation and documented observations. Changing several test conditions between batches makes the findings harder to interpret.
📋 Relevant ASTM, JIS, ISO and Indian Standards
Choose the test method according to the coating, component, and customer specification. Relevant references include:
ASTM B117: Practice for operating salt spray or fog apparatus.
JIS Z 2371: Methods of salt spray testing; the correct designation includes “Z.”
ISO 9227: Salt spray testing covering NSS, AASS, and CASS methods.
IS 9844: Indian reference addressing neutral salt spray testing of electroplated and anodized aluminium coatings.
ASTM D1654: Evaluation of painted or coated specimens after corrosive exposure.
BIS publishes Indian Standards; an IS reference should be selected for the actual application. Mentioning these standards does not establish that every chamber configuration supports every method. For Salt Spray Test Chamber -Digital - LabZenix, confirm the required method and operating capability before ordering.
🏭 Applications Across Manufacturing Industries
Paint manufacturers and coating laboratories use salt fog exposure to investigate protective coating performance. Plating businesses assess finished components against customer requirements, while powder coating units examine issues involving coverage, pretreatment, and exposed edges.
Automotive and engineering applications include brackets, fasteners, housings, and fabricated assemblies. Defense suppliers may require corrosion testing against specific procurement documents. Electronic applications can involve metal enclosures, connectors, and coated hardware where the relevant specification calls for exposure.
In paper and packaging operations, applications mainly concern metal packaging, closures, coated containers, and machinery components. Ordinary paper strength or moisture testing requires different equipment.
🔎 Turning Exposure into Useful Quality Information
A Salt Fog Chamber or Corrosion Test Chamber provides the exposure environment. The value of the test depends equally on specimen preparation, inspection, and reporting.
Before testing, record the substrate, coating system, batch identification, and preparation method. Define whether edges are protected and whether specimens require scribing. After exposure, inspect and rate deterioration using the agreed evaluation method.
A well-kept report helps teams investigate recurring defects and discuss corrective action with suppliers. Test duration and acceptance limits should come from the applicable product specification or customer agreement.
⚙️ Choosing a Salt Test Chamber
Start with your largest component and normal batch size. Allow sufficient room for correct positioning and fog circulation. Consider installation space, compressed air, water quality, drainage, and ventilation.
For Salt Spray Test Chamber -Digital - LabZenix, share your intended standard, specimen dimensions, and daily testing workload. These details help define a suitable configuration and reduce avoidable changes after installation.
